Agentic AI on TrueFoundry: Deployment Cookbook

This repository provides a minimal, end-to-end template for deploying a powerful, tool-powered Agentic AI system. We demonstrate wrapping an agent workflow (built with CrewAI or LangGraph) with scalable deployment via the TrueFoundry AI Gateway through:

1. a custom agent on a FastAPI endpoint as well as
2. a custom Model Context Protocol (MCP) server with FastMCP

Note on Security: We demonstrate a scenario without MCP server authentication for simplicity. For production deployments, TrueFoundry offers robust security features. Refer to the TrueFoundry MCP Gateway Authentication Guide for implementation details.

---

Cookbook Steps

This guide follows the process of developing a single-purpose agent and wrapping it for enterprise deployment.

1. Getting Started

1a. Install and Login to TrueFoundry

Before you begin, you need to install the TrueFoundry SDK and authenticate with the platform.

Step 1: Install TrueFoundry

pip install -U "truefoundry"

Step 2: Login to TrueFoundry (via the tenant provided to you)

tfy login --host "https://demo.truefoundry.cloud"

Important: Always make sure to use the correct tenant provided to you (for example, https://demo.truefoundry.cloud) as specified above.

1b. Agent Flow Design (Jupyter Notebook)

The agent system is designed to perform real-time research and format the output for human consumption.

We are building a Two-Agent Research and Report Generator that uses the TavilySearchTool to find up-to-date information and then formats the final output into a clean Markdown string (we are no longer saving to a file in this simplified version).

Agent	Role	Output
Researcher	Conducts web search and synthesizes findings.	A detailed, cited summary of the topic.
Writer	Takes the summary and formats it into a final Markdown report.	The final Markdown string.

Review the design and test the flow interactively in the notebook:

• With LangGraph
• With CrewAI

1c. TrueFoundry Integration Code

You must configure your LLM framework to correctly route requests through the TrueFoundry AI Gateway.

Option A: Using CrewAI

# Create an LLM instance with TrueFoundry AI Gateway
from crewai import LLM

truefoundry_llm = LLM(
    api_key="your_truefoundry_api_key",
    base_url="your_truefoundry_gateway_base_url",
    model="openai/openai/gpt-5",  # Format: <provider>/<your-truefoundry-model-id>
)
# This format allows you to call any model (Anthropic, Gemini, etc.)
# configured on your TrueFoundry Gateway.

Option B: Using LangChain (If building with LangGraph)

from langchain_openai import ChatOpenAI

llm = ChatOpenAI(
    api_key="your_truefoundry_api_key",
    base_url="your_truefoundry_gateway_base_url/v1",
    model="openai/gpt-5"  # Format: <your-truefoundry-model-id>
)
# This format allows you to call any model (Anthropic, Gemini, etc.)
# configured on your TrueFoundry Gateway.

1d. Python Environment Management (uv)

We use uv for ultra-fast, reproducible, and robust dependency management. Your repository uses a pyproject.toml file to declare direct dependencies and a uv.lock file to lock the entire environment.

To set up your project locally:

Command	Purpose
uv venv	Creates an isolated Python virtual environment, typically named .venv.
uv add <package>	Installs a package and adds it to the dependencies list in pyproject.toml as well as updates uv.lock.
uv sync	Installs all dependencies listed in pyproject.toml using the exact versions specified in the uv.lock file, ensuring perfect reproducibility.
uv run <script>	Executes a script within the project's virtual environment.

1e. Python Script for Agent Code

The final agent logic is isolated into a runnable Python script, which exposes the core run_agent(query) function used by the FastAPI endpoint as well as the MCP server.

• With LangGraph
• With CrewAI

2. Deploy Agent Behind FastAPI Endpoint

For traditional RESTful communication, such as serving a web UI or integrating with a synchronous microservice, you should expose your agent logic through a standard FastAPI endpoint. This section details the complete configuration for your REST service.

2a. The FastAPI Endpoint Code

This script defines the application, input structure, and the core routing logic.

• With LangGraph
• With CrewAI

2b. Core Component Explanation

Component	Code / Logic	Purpose in Deployment
Agent Import	from src.{framework}.agent import run_agent	The single key difference between agent frameworks. This imports the core asynchronous function.
app = FastAPI(...)	Initialization	Creates the main ASGI application that the Uvicorn server will host.
@app.get("/health")	Health Probe	A synchronous endpoint required by TrueFoundry for container health checks (Liveness).
UserInput(BaseModel)	Input Schema	Defines the expected request body ({"user_input": "..."}), providing validation and clear API documentation.
@app.post("/chat")	Main Endpoint	Defines the primary entry point for external web/REST calls.
await run_agent_endpoint(...)	Execution Bridge	Correctly awaits the asynchronous agent function. This ensures the long-running workflow does not block the main server's event loop, maintaining service responsiveness.

---

2c. Execution Command

To run the standalone FastAPI agent endpoint for web consumption:

##Example with LangGraph
uv run uvicorn src.agents.langgraph.server:app --host 0.0.0.0 --port 8000

3. Deploy a Custom MCP Server with FastMCP

3a. Create the MCP Server

The agent_as_mcp_server.py file uses the FastMCP framework to convert the single agent function (conduct_research_and_report) into a network-accessible tool.

• With LangGraph
• With CrewAI

3b. FastMCP Overview

• Initialization: The FastMCP object handles all protocol details.

  mcp = FastMCP("research_report_generation", stateless_http=True)


• Tool Definition: We define a single tool that wraps the entire process.

  @mcp.tool()
  def conduct_research_and_report(query: str) -> str:
      # ... calls run_agent(query) ...
      # ... returns final Markdown report ...


3c. Key FastMCP Components

Component	Purpose	TrueFoundry Context
@mcp.tool()	Exposes the single capability: conduct_research_and_report(query).	This is the function executed by an LLM client (e.g., Cursor, Claude).
@mcp.custom_route("/health")	Creates a standard HTTP endpoint for health checks.	Crucial for Deployment. This can be used as the Liveness Probe to monitor the service health.
Startup Configuration	Sets the host and port for the internal Uvicorn server.	Must listen on host="0.0.0.0" and port=8000 for containerization within TrueFoundry.

The agent_as_mcp_server.py file uses FastMCP to wrap the agent logic into a deployable service and adds necessary deployment configuration.

3d. Execution Command

To run the standalone FastMCP server endpoint for web consumption:

##Example with LangGraph
uv run src.agents.langgraph.agent_as_mcp_server.py

---

3e. Local Testing with MCP Inspector

Before deployment, verify the server's functionality using the MCP Inspector CLI tool. This tool allows you to confirm the server's capabilities and test tools directly via HTTP.

1. Start the MCP Server: Run your server script in one terminal window (if not already up):

   uv run src.agents.langgraph.agent_as_mcp_server.py


2. Test the Server (in a new terminal): Use npx to inspect the capabilities and call the tool.

   # Inspect the capabilities (tools, resources, prompts)
   npx @modelcontextprotocol/inspector


4. Deployment on TrueFoundry (Video Guide)

Important: Sign up only on https://demo.truefoundry.cloud/ (or the tenant provided to you) and do NOT use any other tenants/URLs.

---

With the code complete, the service is ready for containerization and deployment.

The final deployment step involves using the TrueFoundry platform to containerize your code and 1) deploy your agent behind FastAPI endpoint and 2) deploy your custom MCP server.

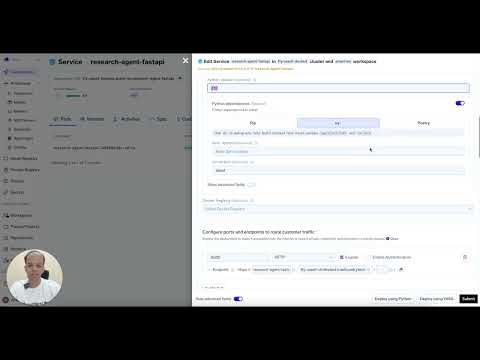

4a. Deploy your agent behind FastAPI endpoint on TrueFoundry (~3mins watchtime)

Watch this guide to see the full deployment process of Agent FastAPI endpoint in action.

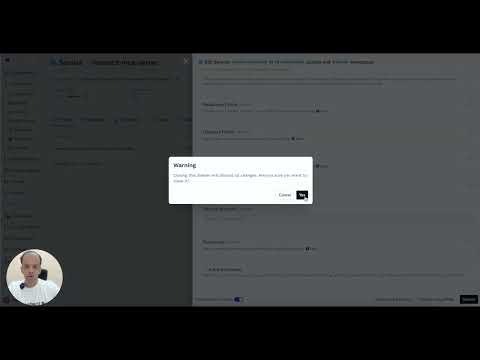

4b. Deploy your custom MCP server on TrueFoundry (~3mins watchtime)

Watch this guide to see the full deployment process of MCP server in action.
