HoloViz MCP Server
Let AI agents create interactive visualizations that render live inside your chat β no code required.
Built with FastMCP Β· Panel Β· HoloViews Β· hvPlot Β· Bokeh
27 MCP tools Β· 4 interactive UI templates Β· live streaming Β· bidirectional interaction
Demo
1. Inline Chart
"Create a bar chart comparing programming language popularity: Python=32%, JavaScript=28%, Java=18%, TypeScript=12%, Others=10%"
2. Panel Widgets & Interactivity
"Build a Panel dashboard with a slider controlling sigma in a normal distribution, updating the histogram in real time"
3. Streaming / Live Data
"Create a live dashboard showing a real-time sine wave that updates every 500ms"
4. Remote Data Loading
"Load this dataset and profile it, then show a correlation heatmap: https://raw.githubusercontent.com/mwaskom/seaborn-data/master/tips.csv"
5. Maps
"Plot the top 10 most populous cities in the world on an interactive tile map with population shown as point size"
6. Multi-Panel Dashboard
"Build a dashboard with 3 panels: a bar chart of fruit sales (Apple=50, Banana=30, Mango=45), a pie chart of the same data, and a summary stats table"
7. Bidirectional Interaction
"Create an interactive scatter plot of the tips dataset where selecting points in the chart updates a summary statistics table below it"
Architecture
This project is designed as an MCP-native visualization platform: LLMs call tools, the server validates and executes visualization code safely, and users get live, interactive UIs inline in chat.

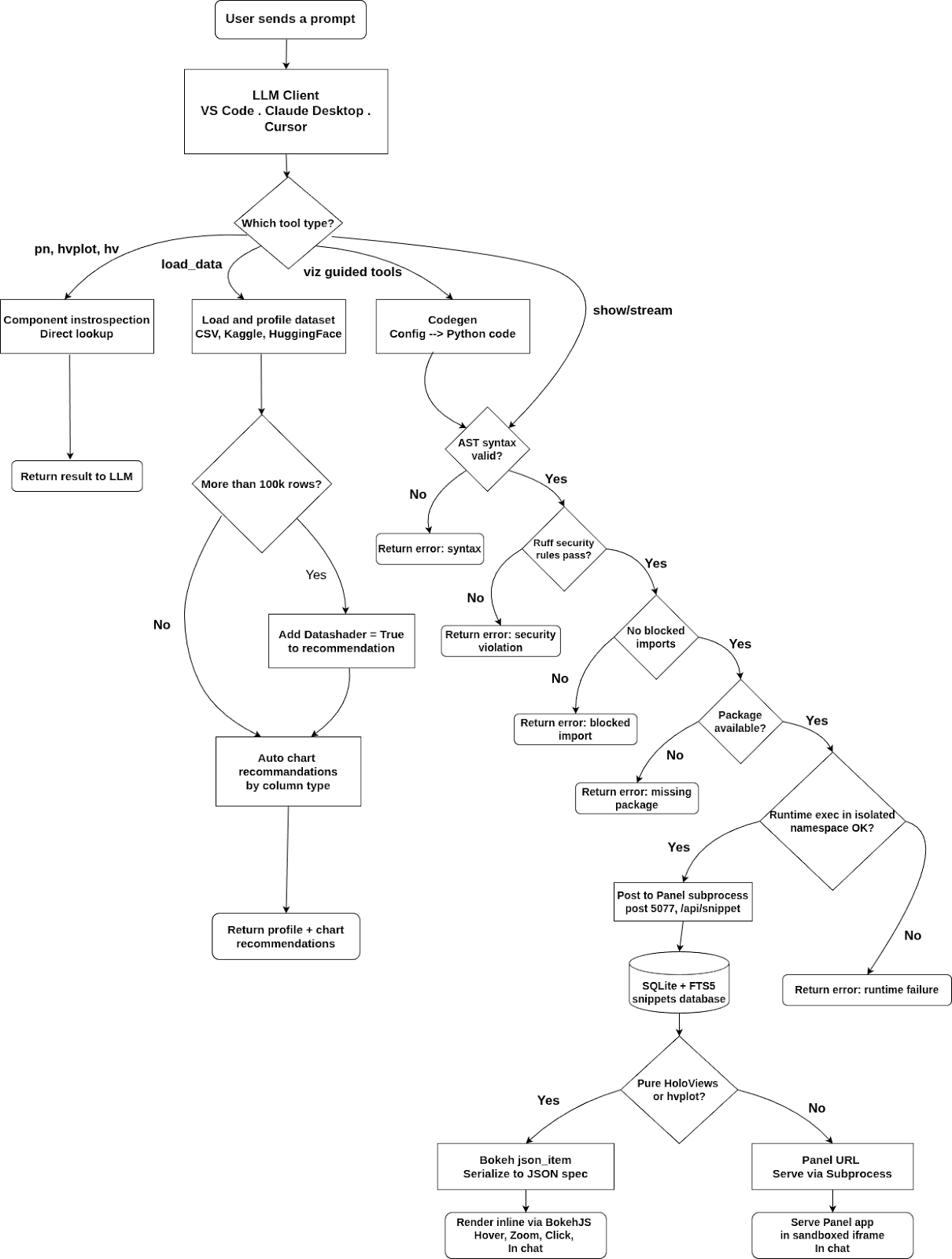

Architecture at a glance
Layer responsibilities
| Layer | Responsibility | Key implementation modules |
|---|---|---|
| LLM Client Layer | Hosts the chat UX and invokes MCP tools | VS Code Copilot, Claude Desktop, Cursor |
| MCP Orchestration | Defines tool surface and namespaces | server/main.py, server/compose.py |
| Validation and Safety | Enforces secure code execution before rendering | validation.py, utils.py, display/database.py |
| Display Runtime | Runs Panel as managed subprocess, serves rendered apps | display/manager.py, display/app.py, display/endpoints.py |
| Persistence | Stores every snippet and execution metadata for replay/debug/search | display/database.py |
| MCP App UI | Renders interactive outputs inline in chat sandboxes | templates/show.html, templates/stream.html |
| HoloViz Stack | Visualization abstraction and rendering backend | Panel, HoloViews, hvPlot, Bokeh, Param |
| Data Layer | Ingestion and profiling for local and remote datasets | load_data() tool in server/main.py |
End-to-end flow
- An agent calls a tool such as
showorstream. - The server runs a 5-layer validation pipeline (syntax, security, packages, extensions, runtime).
- Validated code/config is sent to the Panel display subprocess via REST.
- The display server executes and persists the snippet in SQLite.
- The tool returns either:
- a Bokeh JSON spec for direct in-chat embedding, or
- a Panel URL rendered in an iframe.
- MCP App templates provide rich UX (filters, theme toggle, exports, click-to-insight).
Development Setup
For contributing or running from source:
1. Install Pixi
curl -fsSL https://pixi.sh/install.sh | bash
source ~/.bashrc
2. Clone and install
git clone https://github.com/SuMayaBee/HoloViz-MCP-Server
cd HoloViz-MCP-Server
pixi install
pixi run postinstall
3. Verify
.pixi/envs/default/bin/hvmcp --version
Example Prompts
Simple chart:
Create a bar chart showing: Jan=120, Feb=95, Mar=140, Apr=110
Scatter plot:
Show a scatter plot of 50 random points using hvplot
Full dashboard:
Create a dashboard with this sales data:
products=[Apples, Bananas, Oranges, Grapes],
revenue=[500, 300, 450, 200],
units=[50, 30, 45, 20]
Load a dataset:
Load /path/to/data.csv and create a visualization
Live streaming chart:
Create a live streaming chart that updates every second with random values
Explore available tools:
What hvplot chart types are available?
What Panel widgets are available?
Show me the hvplot skill guide
Features
Core Visualization
- Ask your AI assistant to create a chart β renders inline in the chat via MCP Apps
- Interactive charts (zoom, pan, hover) powered by Bokeh
- Every visualization persisted and accessible via URL
- Works in VS Code Insiders, Claude Desktop, and Cursor
View Code Button
Every chart rendered inline has a View Code button in the toolbar β click it to see the exact Python that generated the visualization, with a one-click copy. Great for learning HoloViz.
Kaggle Integration
Paste any Kaggle dataset or competition URL directly into the chat:
Load https://www.kaggle.com/datasets/uciml/iris and show a scatter plot colored by species
Requires KAGGLE_USERNAME and KAGGLE_KEY in your MCP config env (free Kaggle account).
HuggingFace Datasets
Paste any HuggingFace dataset URL and get instant EDA:
Load https://huggingface.co/datasets/scikit-learn/iris and show a correlation heatmap
HF_TOKEN is optional β only needed for private datasets.
Automatic Chart Recommendations
After load_data(), the server analyses column types and returns up to 3 ready-to-render chart recommendations with working hvplot code β no manual chart selection needed.
Datashader for Big Data
Datasets with >100k rows automatically use datashade=True in all recommended chart code β rendering stays fast regardless of dataset size.
Live Streaming Dashboards
Real-time dashboards with periodic callbacks β sine waves, counters, live feeds β all rendered inline.
Maps
Interactive tile maps using hvPlot + GeoViews:
Plot the top 10 most populous cities on an interactive map with population as point size
Tools
| Tool | Description |
|---|---|
show(code) | Execute Python viz code, render as live UI with View Code button |
stream(code) | Execute streaming Panel code with periodic callbacks |
load_data(source) | Profile a dataset + auto chart recommendations. Supports CSV, Parquet, Kaggle, HuggingFace, S3 |
validate(code) | Run 5-layer validation before show() |
viz.create | High-level: describe a chart in plain config, no Python needed |
viz.dashboard | Create a multi-panel dashboard from structured config |
viz.stream | Create a live streaming visualization |
viz.multi | Create a multi-chart grid with linked selections |
pn.list / pn.get / pn.params / pn.search | Panel component introspection |
hvplot.list / hvplot.get | hvPlot chart type discovery |
hv.list / hv.get | HoloViews element discovery |
skill_list / skill_get | Access best-practice guides for Panel, hvPlot, HoloViews |
list_packages | List installed packages in the server environment |
Project Structure
src/holoviz_mcp_server/
βββ cli.py # CLI entry point (hvmcp serve / mcp / status)
βββ config.py # Pydantic config + env var loading
βββ validation.py # 5-layer code validation pipeline
βββ utils.py # Code execution, extension detection utilities
β
βββ server/ # MCP server layer (FastMCP)
β βββ main.py # Main server + core tools (show, stream, load_data, ...)
β βββ compose.py # Mounts all sub-servers with namespaces
β βββ panel_mcp.py # pn.* tools
β βββ hvplot_mcp.py # hvplot.* tools
β βββ holoviews_mcp.py # hv.* tools
β
βββ introspection/ # Pure Python discovery functions
β βββ panel.py # Panel component discovery
β βββ holoviews.py # HoloViews element discovery
β βββ hvplot.py # hvPlot chart type discovery
β βββ skills.py # Skill file loading
β
βββ display/ # Panel display server (runs as subprocess)
β βββ app.py # Panel server entry point
β βββ manager.py # Subprocess lifecycle management
β βββ client.py # HTTP client (MCP β Panel)
β βββ database.py # SQLite + FTS5 persistence
β βββ endpoints.py # REST handlers (/api/snippet, /api/health)
β βββ pages/ # Web UI pages (feed, view, add, admin)
β
βββ templates/ # MCP App HTML (inline rendering in chat)
β βββ show.html # Chart viewer + click-to-insight
β βββ stream.html # Live streaming viewer
β
βββ skills/ # Best-practice guides (SKILL.md files)
βββ panel/
βββ hvplot/
βββ holoviews/
βββ param/
βββ data/
Installation
Prerequisite: Install
uvfirst:# macOS / Linux curl -LsSf https://astral.sh/uv/install.sh | sh # Windows powershell -ExecutionPolicy ByPass -c "irm https://astral.sh/uv/install.sh | iex" # Or via pip pip install uv
VS Code / Copilot Chat (Recommended)
Add to your global ~/.config/Code - Insiders/User/mcp.json or workspace .vscode/mcp.json:
{
"servers": {
"holoviz": {
"type": "stdio",
"command": "uvx",
"args": ["--from", "hvmcp", "hvmcp", "mcp"]
}
}
}
Open Copilot Chat (Ctrl+Alt+I) β switch to Agent mode β start chatting.
Claude Desktop
Add to ~/Library/Application Support/Claude/claude_desktop_config.json (macOS) or %APPDATA%\Claude\claude_desktop_config.json (Windows):
{
"mcpServers": {
"holoviz": {
"command": "uvx",
"args": ["--from", "hvmcp", "hvmcp", "mcp"]
}
}
}
Restart Claude Desktop.
Cursor
Add to ~/.cursor/mcp.json:
{
"mcpServers": {
"holoviz": {
"command": "uvx",
"args": ["--from", "hvmcp", "hvmcp", "mcp"]
}
}
}
Claude Code / Other stdio clients
{
"mcpServers": {
"holoviz": {
"command": "uvx",
"args": ["--from", "hvmcp", "hvmcp", "mcp"]
}
}
}
Optional extras
The base install is lightweight. Add only what you need:
| Extra | What it adds | Install |
|---|---|---|
geo | Maps via GeoViews + Cartopy | uvx --from "hvmcp[geo]" hvmcp mcp |
bigdata | Datashader for >100k row datasets | uvx --from "hvmcp[bigdata]" hvmcp mcp |
kaggle | Kaggle dataset loading | uvx --from "hvmcp[kaggle]" hvmcp mcp |
huggingface | HuggingFace dataset loading | uvx --from "hvmcp[huggingface]" hvmcp mcp |
all | Everything above | uvx --from "hvmcp[all]" hvmcp mcp |
Optional: Kaggle & HuggingFace Integration
To load datasets directly from Kaggle or HuggingFace URLs, add credentials to the env section of your config:
{
"env": {
"KAGGLE_USERNAME": "your_kaggle_username",
"KAGGLE_KEY": "your_kaggle_api_key",
"HF_TOKEN": "your_huggingface_token"
}
}
- Kaggle token: kaggle.com β Account β Settings β Create New Token
- HuggingFace token: huggingface.co β Settings β Access Tokens β New token (Read role)
HF_TOKEN is optional β only needed for private HuggingFace datasets. If credentials are not provided, Kaggle/HuggingFace URLs will return a friendly message instead of failing silently.
Example prompts once configured:
Load https://www.kaggle.com/datasets/uciml/iris and show a scatter plot colored by species
Load https://huggingface.co/datasets/scikit-learn/iris and show a correlation heatmap
License
BSD 3-Clause
