StyleATC Tailwind Styling System (Dockerized)

This repository contains the StyleATC Tailwind Styling System, a MCP (Model Context Protocol) Server designed to manage a centralized design theme for React components using Tailwind CSS and Radix UI Primitives. This system is intended to be run as a Docker container.

The system allows you to define core design values (colors, spacing, typography, animations) and component variants through a structured configuration file (theme_config.json). It then generates dynamic React component files and a Style Guide page based on this configuration and provided boilerplate templates.

This README provides instructions for setting up and running the system using Docker.

Features

• Centralized Theme Configuration: Define and manage design tokens and component styles in theme_config.json.
• Dynamic Component Generation: Generate React component files that use the theme data to apply styles via Tailwind CSS classes.

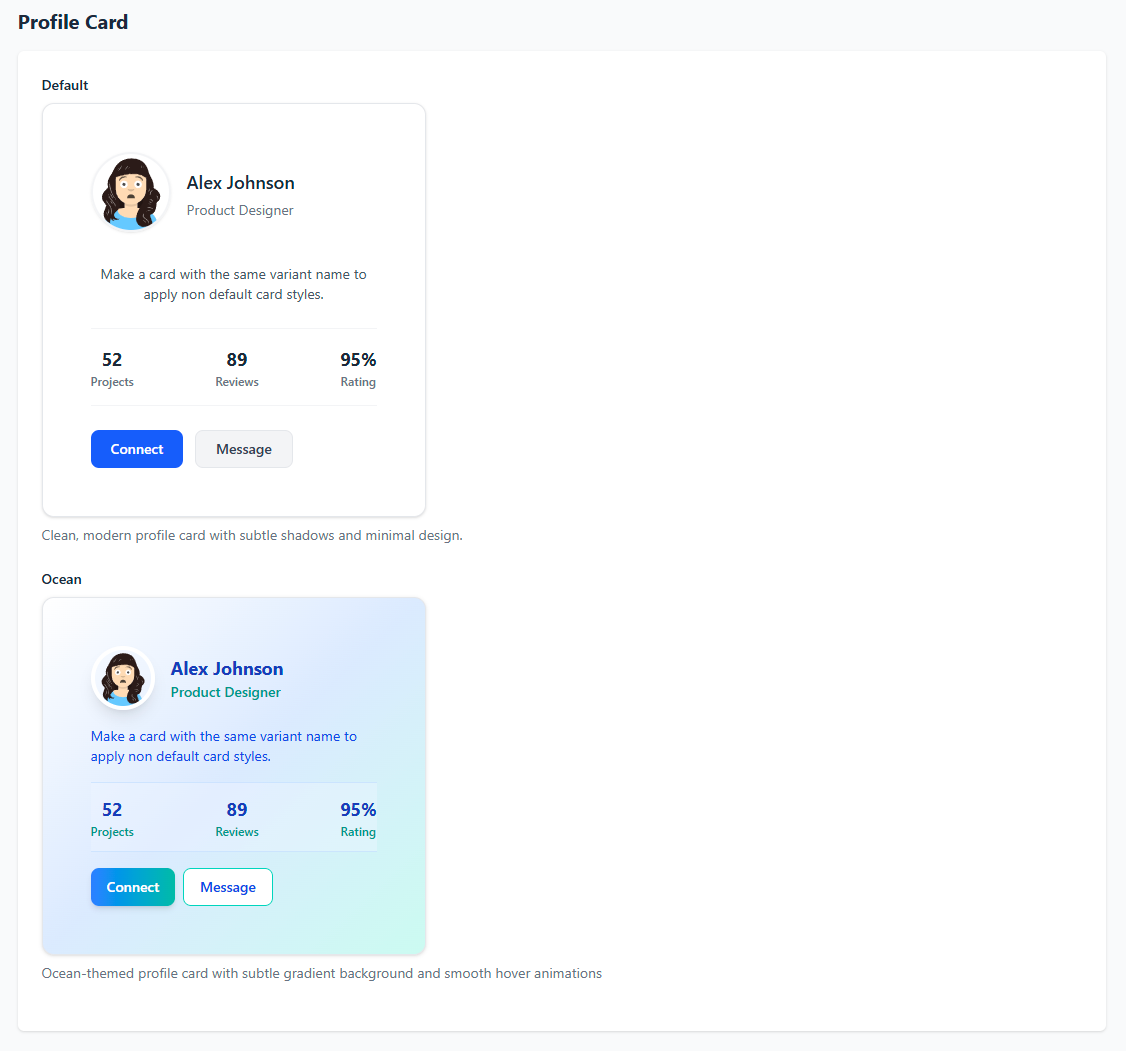

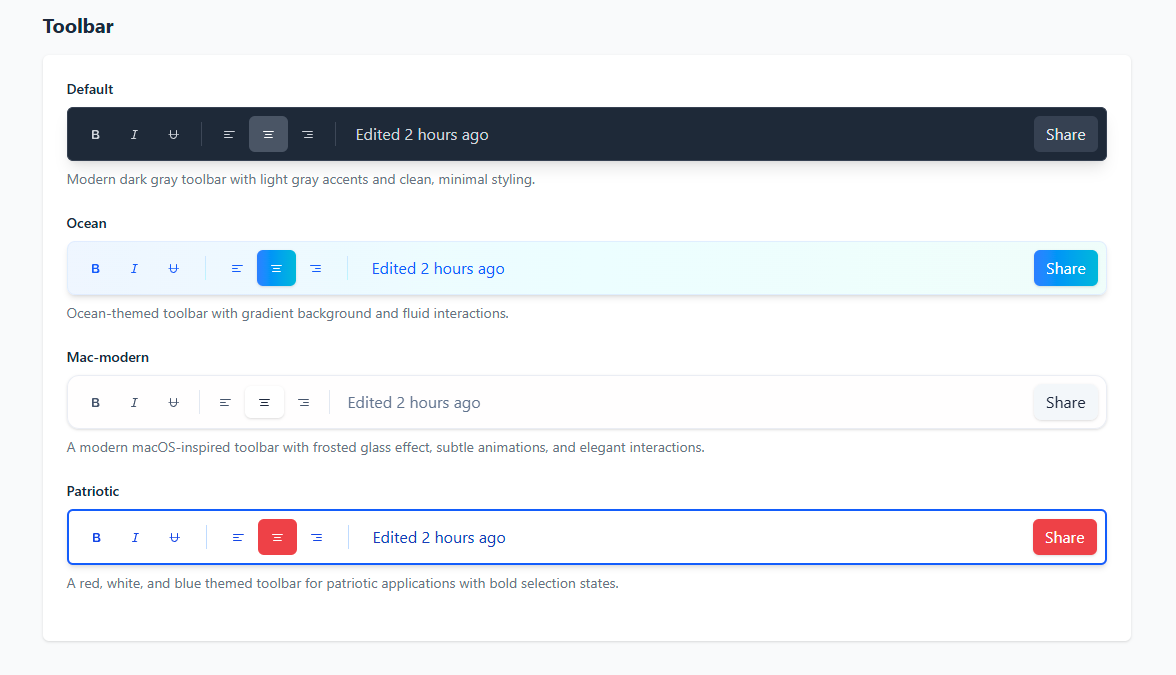

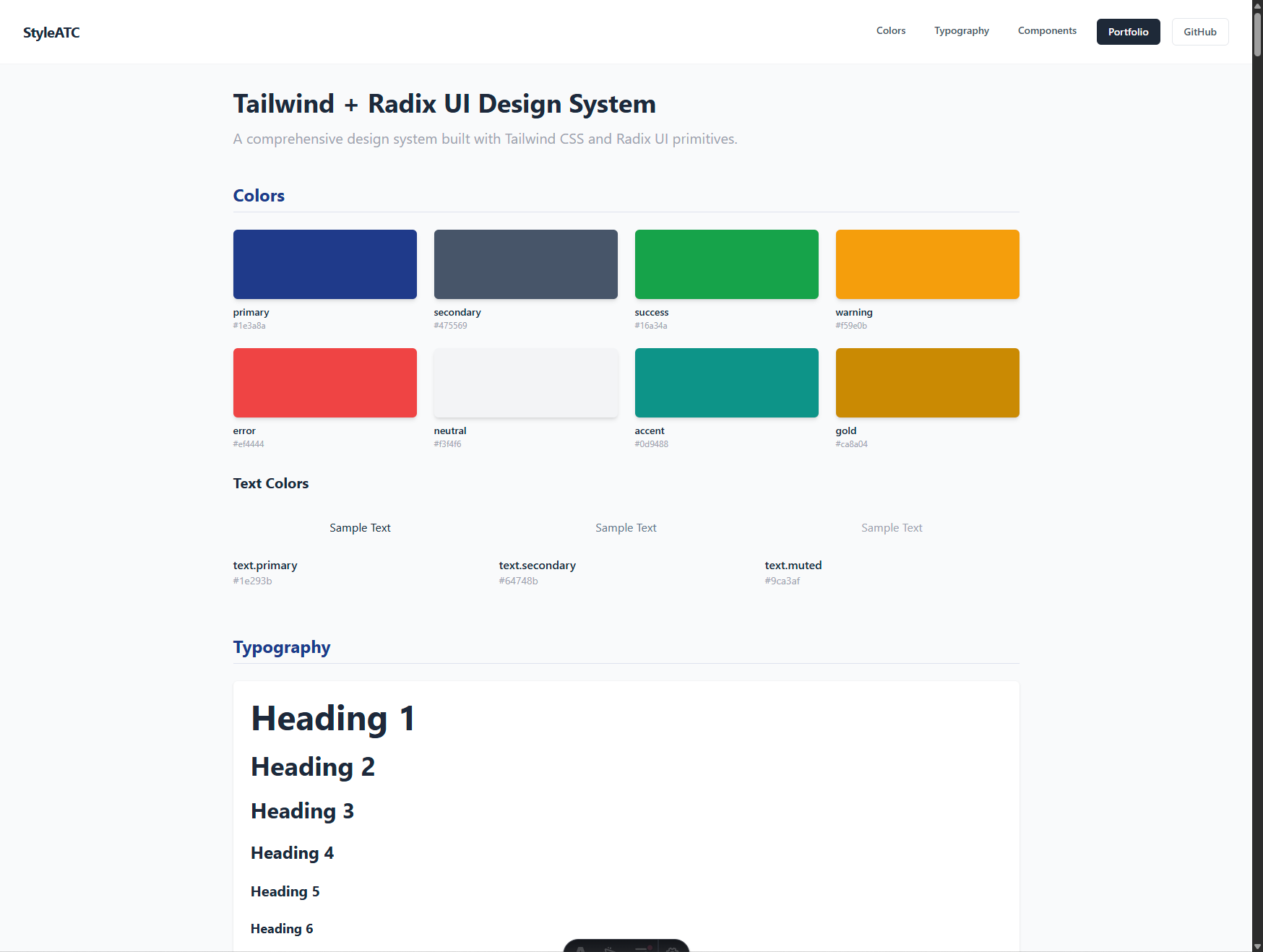

• Style Guide Generation: Create a comprehensive Style Guide page showcasing all components and their variants.
• Preview Application: A simple Astro application to preview the generated components and style guide, also runnable within the Docker environment.
• Natural Language MCP Interface: Interact with the styling system using conversational language. The system understands your requests and selects the appropriate internal tools.
• Manage Theme Changes: Tools to update, create, and delete component variants and global values.
• Save and Revert Changes: Persist theme modifications or revert to the last saved state.

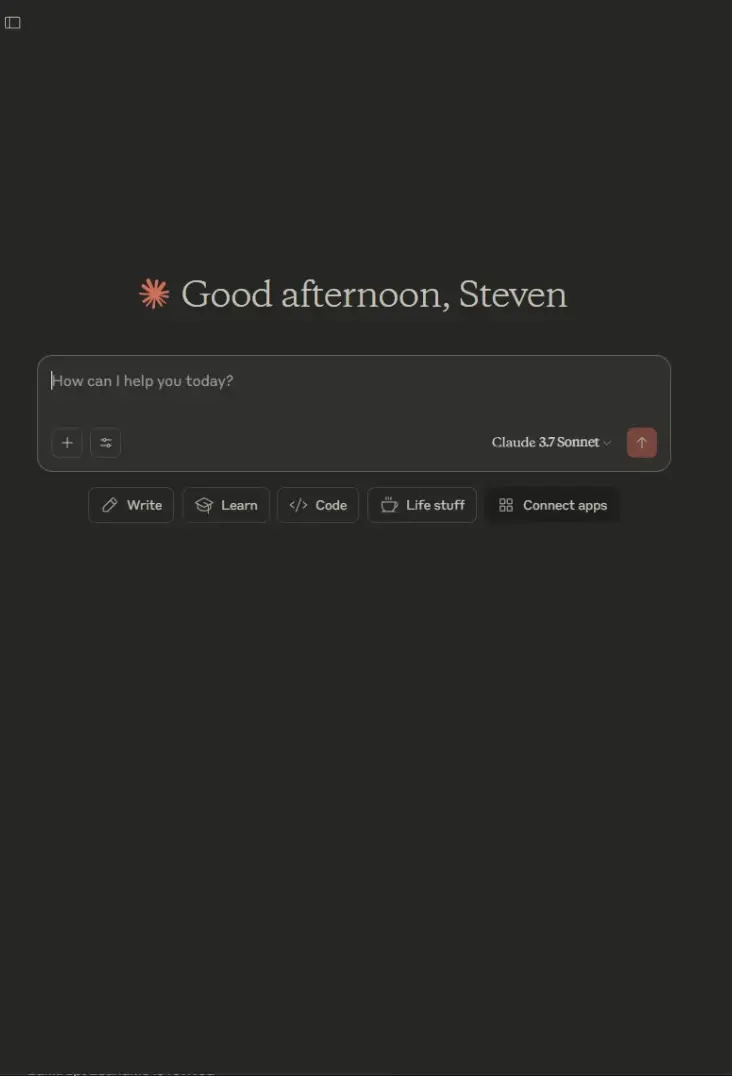

StyleATC in Action

Prerequisites

Before you begin, ensure you have the following installed and configured:

• Docker Desktop (for Windows/Mac) or Docker Engine + Docker CLI (for Linux).
  • For Windows users: Ensure Docker Desktop is set up to work with WSL 2 if you are using WSL to manage your files.
• Git: For cloning the repository.
• An MCP Desktop Client (e.g., Claude Desktop): A desktop application that supports connecting to MCP servers via stdio. This client will be configured to execute the Docker container.
• Text Editor/IDE: For editing configuration files if needed (though most changes should be via MCP).

Getting Started (Docker)

1. Clone the Repository: Open your terminal (e.g., WSL, PowerShell, macOS/Linux terminal) and navigate to an appropriate directory.

   git clone https://github.com/thesubtleties/StyleATC.git
   cd your/diretory/here/style_guide


   (You will now be in the style_guide directory, which we'll treat as the project root for Docker operations).

2. Build the Docker Image: From the style_guide directory (which should contain your Dockerfile and optionally a docker-compose.yml):

   docker build -t mcp/style-guide .


   Or, if you have a docker-compose.yml configured to build the service:

   docker compose build
   # or for older versions:
   # docker-compose build


   This command will:

   • Download the base Python image.
   • Copy your application code from the current directory ( . ) into the image.
   • Install Python dependencies (like fastmcp) inside the Docker image as per your Dockerfile.
   • Install Node.js dependencies for the preview app inside the Docker image if your Dockerfile handles this.

3. Prepare Local Directories for Volume Mounting (If Necessary): The Docker setup will mount local directories from your style_guide folder into the container so that your theme data, generated output, and preview source are persistent. Critically, the data and preview directories must exist within your cloned style_guide directory on your host machine.

   • style_guide/data
   • style_guide/preview

   The data directory will store theme_config.json and the output of generated components/style guide. The preview directory contains the source for the Astro preview app.

4. Configure your MCP Desktop Client: Open your client's configuration file (e.g., claude_desktop_config.json). Add or modify the mcpServers section to run the Docker container. Replace /your/host/path/to/StyleATC/projects/brainstorm/style_guide/ with the actual absolute path to your cloned style_guide directory on your host machine.

   • Pathing Note: The src path for --mount needs to be the absolute path on your host system that Docker can access.
     • Windows (Docker Desktop with WSL backend): Often /mnt/c/Users/YourUser/.../StyleATC/projects/brainstorm/style_guide or a similar WSL path if files are in the Linux filesystem.
     • macOS/Linux: A standard absolute path like /Users/youruser/.../StyleATC/projects/brainstorm/style_guide.

   Example claude_desktop_config.json entry:

   {
     "mcpServers": {
       "styleGuide": {
         "command": "docker",
         "args": [
           "run",
           "-i", // Interactive, keep STDIN open
           "--rm", // Automatically remove the container when it exits
           "--mount",
           "type=bind,src=/your/host/path/to/StyleATC/projects/style_guide/data,dst=/data,readonly=false",
           "--mount",
           "type=bind,src=/your/host/path/to/StyleATC/projects/style_guide/preview,dst=/app/preview,readonly=false",
           "-p",
           "3000:3000", // Map port 3000 on host to 3000 in container for preview server
           "mcp/style-guide" // The Docker image tag used during `docker build`
         ]
       }
     }
   }

   // WSL

      {
    "mcpServers": {
      "styleGuide": {
        "command": "wsl",
        "args": [
          "docker",
          "run",
          "-i",
          "--rm",
          "--mount",
          "type=bind,src=/home/user/your/directory/style_guide/data,dst=/data,readonly=false",
          "--mount",
          "type=bind,src=/home/user/your/directory/style_guide/preview,dst=/app/preview,readonly=false",
          "-p",
          "3000:3000",
          "mcp/style-guide"
        ]
      }
    }




   • Explanation of args:
     • run -i --rm: Runs a new container interactively and removes it on exit.
     • --mount type=bind,src=...,dst=...,readonly=false: Mounts your local data and preview directories (from within your style_guide host folder) into the container. readonly=false allows the MCP to Drite changes.
     • -p 3000:3000: Exposes port 3000 from the container to port 3000 on your host machine for the preview server.
     • mcp/style-guide: The name/tag of the Docker image you built (e.g., mcp/style-guide if you used docker build -t mcp/style-guide .).

   Save the configuration file and restart your MCP desktop client if necessary.

Interacting with the StyleATC System

Once your MCP desktop client is configured, connecting to the "styleGuide" server will start the Docker container. You can then interact with it using natural language. You do not need to explicitly call the tool function names. Describe what you want to do, and the system will determine the appropriate action.

For example, instead of typing list_components(), you can say:

• "Show me the available components."

Key Tools and Functionality (For Reference)

While you'll primarily use natural language, understanding the system's underlying capabilities can be helpful:

• Displaying Information:
  • welcome(): Provides an overview of the system.
  • list_components(): Lists components and variants.
  • list_animations(): Lists global animation names.
  • get_component_details(), get_variant_details(): Show style details.
  • get_animation_details(): Shows CSS for an animation name.
• Modifying Styles:
  • update_variant_property(): Updates variant properties (e.g., tailwind classes, including animate-*).
  • update_variant_element(): Updates properties of elements within variants.
  • update_global_color(): Updates global colors.
• Creating and Deleting Styles:
  • create_component_variant(): Creates new component variants.
  • delete_component_variant(): Deletes variants.
• Code Generation and Preview:
  • generate_all_components(), generate_style_guide(): Generate code.
  • update_preview(): Copies generated files to the preview app.
  • start_preview_server(), stop_preview_server(): Manage the preview server.
• Theme File Management:
  • save_theme(), has_unsaved_changes(), revert_theme(): Manage theme_config.json.

Again, you typically do not need to use these exact function calls. Simply tell the system what you want to achieve in plain language.

Previewing Changes (with Docker)

1. Use the MCP tools to generate components and update the preview (e.g., "generate all components and update the preview app").

2. Start the Astro preview server from within the MCP session:

   • "Start the preview server." The preview server will run inside the Docker container on port 3000. Because of the -p 3000:3000 mapping, you can access it from your host machine's browser at http://localhost:3000.

3. To stop the preview server:

   • "Stop the preview server."

Troubleshooting

• Docker Build Failures: Check your Dockerfile (located in the style_guide directory) for syntax errors and ensure all necessary base images and build tools are accessible.
• Container Fails to Start (via MCP client):
  • Verify the Docker image name (mcp/style-guide in the example) in your client config matches the tag you used during docker build.
  • Try running the docker run command (from your client's args) manually in your terminal to see specific errors from Docker.
• Volume Mount Issues:
  • Ensure the src path in your client's --mount option is the correct absolute path on your host machine to the style_guide/data and style_guide/preview directories.
  • The target paths (dst) inside the container (/data, /app/preview) must match what the application scripts expect.
• Preview Server Not Accessible (http://localhost:3000):
  • Confirm the -p 3000:3000 port mapping is in your client's Docker execution arguments.
  • Check the MCP server logs (if visible in your client) or Docker container logs to ensure the Astro server inside the container started successfully and is listening on 0.0.0.0:3000.
• Changes Not Persisting (e.g., theme_config.json resets):
  • The most common cause is an incorrect src path for the /data volume mount. The application inside Docker is writing to /data, but if it's not correctly mapped to your host's style_guide/data directory, changes will be lost when the container stops.
• Tailwind/Animation Issues in Preview: This usually relates to the Tailwind CSS configuration within your frontend project (global.css by default) or the inclusion of your CSS file with @keyframes. This setup is external to the StyleATC MCP server itself but impacts how styles are rendered.
